Infrared 1080P 4 Camera Security System With Dvr Vari Focal 3.6mm Lens 12pcs Nano leds

Product Categories
Shenzhen Tollar Security Equipment Limited
Contact Now

Infrared 1080P 4 Camera Security System With Dvr Vari Focal 3.6mm Lens 12pcs Nano leds

  • 1
  • 2

Brand Name : A-ZONE

Model Number : AZ-ahd camera kit k3

Certification : CE、FC、ROHS、IP66

Place of Origin : shenzhen

MOQ : 50pcs

Price : negotiation

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 1000000pcs/M

Delivery Time : depends on quantity

Packaging Details : Carton packing, with air pocket, and we can design the box as your requirements

Lens : 3.6mm Lens 12pcs Nano leds

Standard : NTSC(525Line,60f/s),PAL(625Line,50f/s)

IR distance : 30M;

Housing : Metal Bullet

Vedio Compression : H.264 High Profile

Sensor : CMOS

Contact Now

4 Channel 1080P Cctv Camera Kit AHD CCTV Camera System Vari-focal Infrared

DVR Function:

1. Multi-mode input

2. Motion detection

3. with Audio(OPTIONAL)

4. Record and Playback

5. Storage and backup(Hard drive is optional)

our company :

Tollar security equipment co.,ltd is one of the fast growing cctv manufactures in china,We are a modernized Hi-tech enterprise that specializes in developing high quality security products,combining both manufacturing and sales.
We deal in all kinds of CCTV cameras such as camera module,different types analog cameras,HD-Analog(CVI,AHD,TVI),IP,PTZ Speed Dome camera,dvr,nvr knit etc cameras,all our products have been certified by CE,FCC,ROHS.

IP67 waterproof

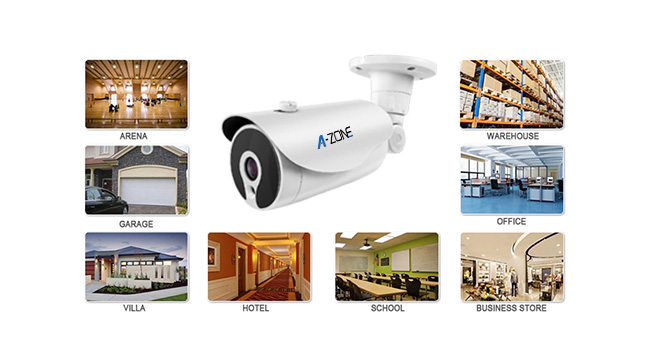

The HD surveillance cameras are extremely rugged and flexible.
Versatile ceiling or wall mounting options allows them to be placed wherever you need them most-indoors and outdoors.
They are IP66 rated and are able to withstand the most unforgiving climates.

AHD DVR kit Parameters:

Camera MODEL HD K3 AHD CCTV Camera Kit
Signal system PAL/NTSC
Min Illumination COLOR:0.6Lux @(F1.2,AGC ON),0 LUX with IR
White and black 0.08Lux @ (F1.2,AGC ON),0 LUX with IR
Shutter 1/50(1/60)"- 1/100,000"
Day &Night System IR-CUT
Lens 3.6mm Lens 3pcs Array leds
Camera interface CS
vedio Vedio Compression H.264 High Profile
compressed output 100 Kbps~8Mbps
Image Pixel 1080p
Frame Rate 50Hz:25fps/30fps
Image setting Saturation,brightness,contrast can ajust by IE browser and client-side
I/O Remote Remote full access via IE&Client software
Smart Analytics Auto
Network Transmission TCP/IP,HTTP,DHCP,DNS,DDNS,PPPOE,SMTP,NTP(HTTPS, RTP/RTSP, SIP ,802.1x,IPv6)
Access Protocol onvif
Universal Utilities Scintillation, double stream, heartbeat, password protection
Output PIF out 1pcs RJ45 10M/100M
vedio out 1Vp-p Composite Output(75Ω/BNC)

AHD DVR Data:

Model TL-AD7004 TL-AD7008
Main Prcessor Embedded processor
Video Input 4 channel,BNC 8 channel,BNC
Standard NTSC(525Line,60f/s),PAL(625Line,50f/s)
Audio Input 4 channel,BNC
AUDIO Output 1 channel,BNC
Display Interface 1 HDMI,1VGA,1BNC
Resolution 1920*1080,1280*1024,1280*720,1024*768,800*600
Display Split 1//4 1/4/8/
Privacy Masking 4 rectangular zones(each camera)
OSD camera title,Time,Video loss,Camera lock,Motion detection,Recording
Resolution

720P(1280*720/1280*600)/960h(960*576/960*480)/D1/4CIF

(704*576/704*480)/CIF(352*288/352*240)/QCIF(176*144/176*120)
